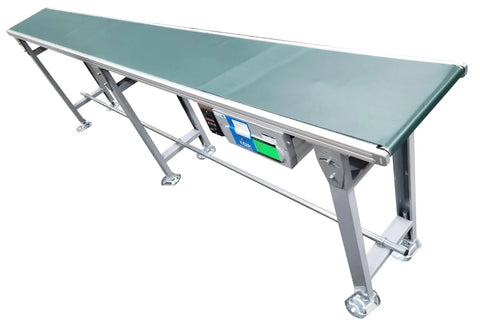

Iopak Conveyor 34-GI-300 3m

Timing Belt

Timing Belt, 8mm pitch, Model: STD-408-51 teeth

Part code: 34-GI-300-03

Speed Controller (Suits Newer Models)

Speed Controller (Suits Newer Models), Model No:T13-200W-12-H

Part code: 34-Gl-300-29

Motor with Gearbox, Models: 120W 51K120RGN-CF Motor, 5GN 12.5K Gearbox

Motor with Gearbox, Models: 120W 51K120RGN-CF Motor, 5GN 12.5K Gearbox, 220V x 120W x 50 / 60Hz x 1300 / 1600rpm

Part code: 34-GI-300-34

Leg Bracket

Part code: 34-GI-300-26

Rollers With Pins

Rollers With Pins, 305mm Wide Roller x 330mm Long Axle Pin

Part code: 34-GI-300-10

Speed Controller (Suits Older 1.5m, 3m and 5m Models)

Speed Controller (Suits Older 1.5m, 3m and 5m Models), Model: AUS22-120W

Part code: 34-GI-300-02

Motor With Gearbox (New), Models: 120W 51K120GN-YF Motor, 5GN 12.5K Gearbox

Motor With Gearbox (New), Models: 120W 51K120GN-YF Motor, 5GN 12.5K Gearbox, 220 / 380V x 120W x 50 / 60Hz x 1200 / 1500 rpm

Part code: 34-Gl-300-28 New

Leveling Feet Leg

Leveling Feet Leg

Part code: 34-GI-300-27

Blanking Cap For Left & Right Corners

Blanking Cap For Left & Right Corners (Pack of 2)

Part code: 34-GI-300-18

Gearbox

Gearbox, Model: 5GN 12.5K, Geared faster than 5GN-18K conveyor speed

Part code: 34-GI-300-11

Leg

Part code: 34-GI-300-30

Timing Pulley With Shield

Timing Pulley With Shield

Part code: 34-GI-300-05

Bearing

Bearing, 35mm OD x 17mm ID x 10mm wide, Model: 6003Z

Part code: 34-GI-300-08

Motor With Gearbox (Original) Models: 120W 51K120RGN-CF Motor, 5GN 18K Gearbox

Motor With Gearbox (Original) Models: 120W 51K120RGN-CF Motor, 5GN 18K Gearbox, 200 / 220V x 120W x 50 / 60Hz x 1450 / 1800 rpm

Part code: 34-GI-300-01 Original

Back Cover For Speed Controller Cover

Back Cover For Speed Controller Cover

Part code: 34-Gl-300-33

Speed Controller Cover

Speed Controller Cover

Part code: 34-GI-300-32

Speed Controller Bracket

Speed Controller Bracket

Part code: 34-Gl-300-31

Motor & Timing Belt Cover Plate 2

Motor & Timing Belt Cover Plate 2

Part code: 34-GI-300-22

Gearbox

Gearbox, Model: 5GN 18K, Geared slower than 5GN-12.5K conveyor speed

Part code: 34-GI-300-16

Conveyor Belt 3 Meters Long

Conveyor Belt 3 Meters Long, 295mm wide x 6,250mm long

Part code: 34-GI-300-14

Bearing

Bearing, 40mm OD x 17mm ID x 11mm width

Part code: 34-GI-300-07

Driving Unit Roller- Large

Driving Unit Roller- Large

Part code: 34-GI-300-25

Motor & Timing Belt Adjusting Plate

Motor & Timing Belt Adjusting Plate

Part code: 34-GI-300-24

Driving Unit Roller- Small

Driving Unit Roller- Small

Part code: 34-GI-300-23

Motor & Timing Belt Cover Plate 1

Motor & Timing Belt Cover Plate 1

Part code: 34-GI-300-21

Driving Unit Cover Plate

Driving Unit Cover Plate

Part code: 34-GI-300-20

Driving Plate 1

Driving Plate 1

Part code: 34-GI-300-19

Belt Tension Adjusting Bolt

Belt Tension Adjusting Bolt

Part code: 34-GI-300-17

Bearing

Bearing, 24mm OD x 9mm ID x 7mm wide, Model: 609Z

Part code: 34-GI-300-09

Timing Pulley Without Shield

Timing Pulley Without Shield

Part code: 34-GI-300-06
